Compressables (2021)

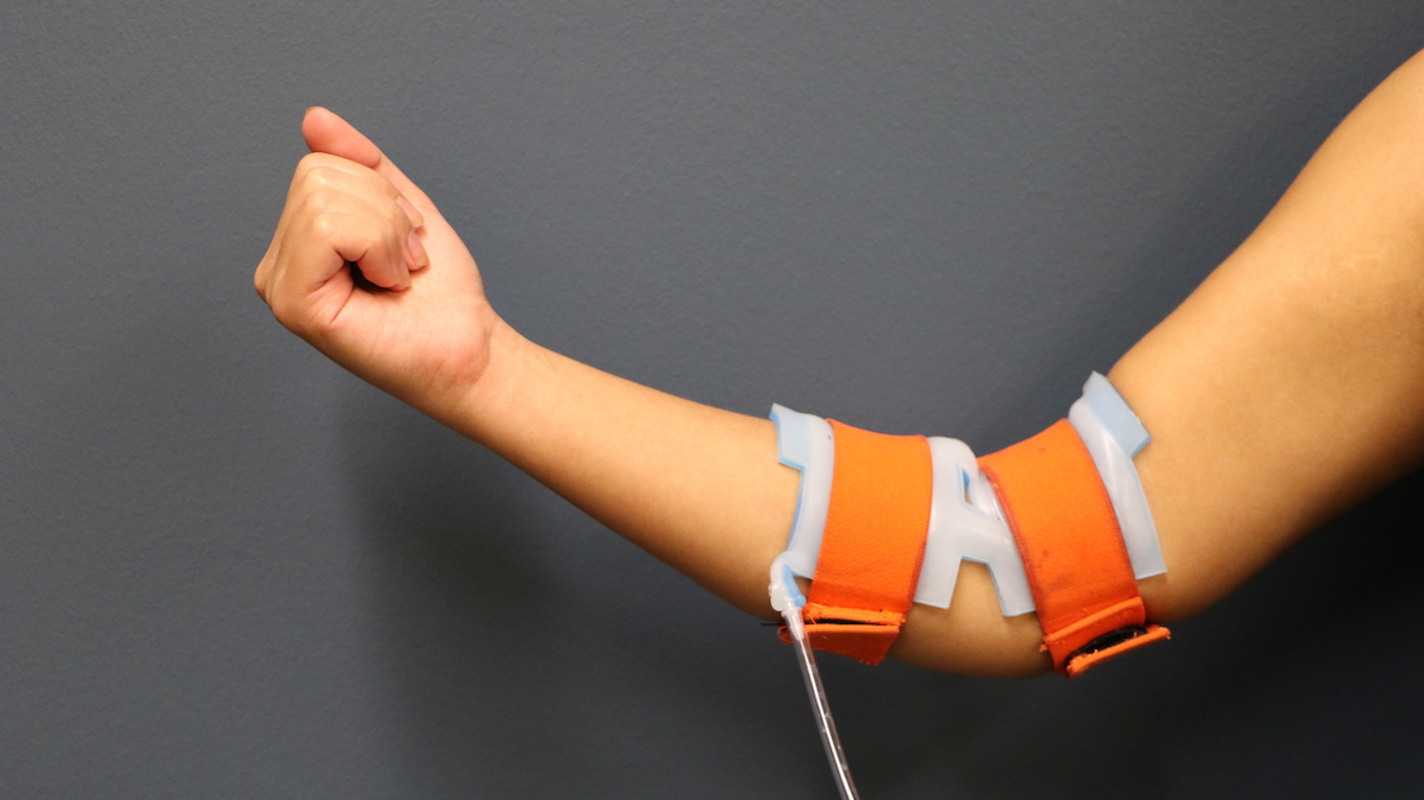

A Haptic Prototyping Toolkit for Wearable Compression-based Interfaces


0a0a1396.jpg ha

Description

Compression-based haptic feedback has been used in wearables to issue notifications, provide therapeutic effects, and create immersive storytelling environments. Such worn devices are well studied on the wrists, arms, and head, however, many unconventional yet context-rich areas of the body remain underexplored. Current haptic prototyping techniques have large instrumentation costs, requiring the design of bespoke embedded devices that do not have the flexibility to be applied to other body sites. In this work, we introduce an open-source prototyping toolkit for designing, fabricating, and programming wearable compression-based interfaces, or compressables. Our approach uses a lost-PVA technique for making custom inflatable silicone bladders, an off-the-shelf pneumatics controller, and a mobile app to explore and tune haptic interactions through sketch gestures. We validate the toolkit’s open-endedness through a user study and heuristic evaluation. We use exemplar artifacts to annotate the design space of compressables and discuss opportunities to further expand haptic expression on the body.

Photos

Authors

20200630 152207.jpg ha.png ha
Shreyosi Endow
Statments nature self.jpg
Hedieh Moradi
Img 0526  2 .jpg ha
Anvay Srivastava
Esauportraitsmall.jpg ha
Esau Noya
Fps2019 fullres 9ct.png ha
Cesar Torres
