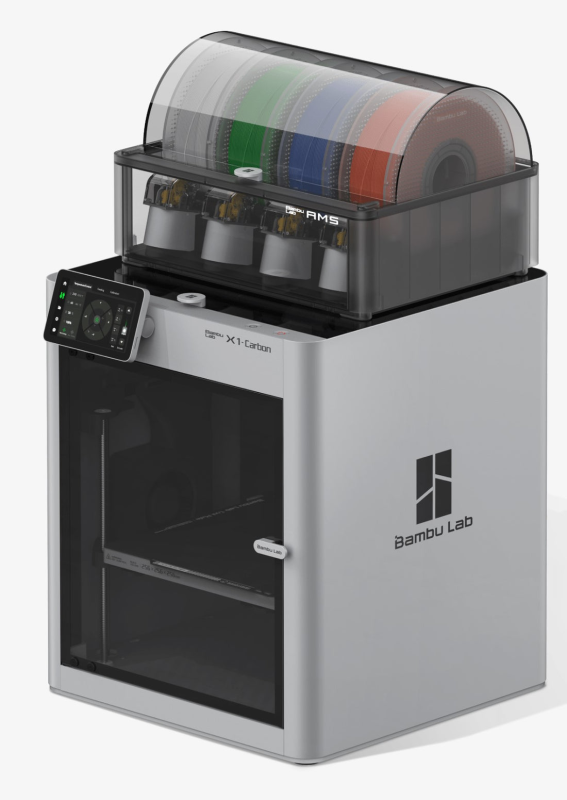

Bambu Lab X1-Carbon Combo 3D Printer

Machine • Studio
Safety Training is REQUIRED before using this resource and must be cleared by Hybrid Atelier personnel.
Bambu Lab X1-Carbon Combo 3D Printer


Important Links



  • Build Volume (W×D×H) 256 × 256 × 256 mm³
  • Nozzle 0.4 mm
  • Max Hot End Temperature 300 ℃
  • Filament Diameter 1.75 mm

Supported Materials (3.00mm)

  • PLA
  • ABS
  • Nylon
  • CPE
  • TPU
  • PVA
  • ASA
  • Ideal for PA, PC, Carbon/ Glass Fiber Reinforced Polymer

Personal Protective Equipment

Gloves Recommended

Take caution when using the scraper to remove parts from the printbed.

Eye Protection Required

Safety glasses must be worn when post-processing a part.

Tie Back Loose Hair

Hair can catch on moving parts.


Burn Hazard

Avoid touching the machine nozzles

Pinch Hazard

Avoid touching moving parts on the machine.

Cut Hazard

Take care when handling sharp scrapers.

Things to Avoid

  1. Do not touch the print nozzles when in operation or when cooling down.
  2. Do not print with materials that are not listed or prohibited.

Safety Checks

  1. Ensure residue is not present on the nozzle.
  2. Clean the printbed from adhesive residue.
  3. Verify that your g-code settings match the 3D printer settings.
  4. If the part is not released with casual force, remove the glass printbed and apply water to the glass. Wait for the adhesive to dissolve, then apply force with the scraper.

Operational Checks

  1. Supervise the 3D printer until the first couple of layers have printed.
  2. Label a post-it with the print job time, your name, and an email to reach you at.


  1. Remove the print from the test bed. Label print with a post-it if it does not belong to you.
  2. Clean the testbed if excessive adhesive has built up.
